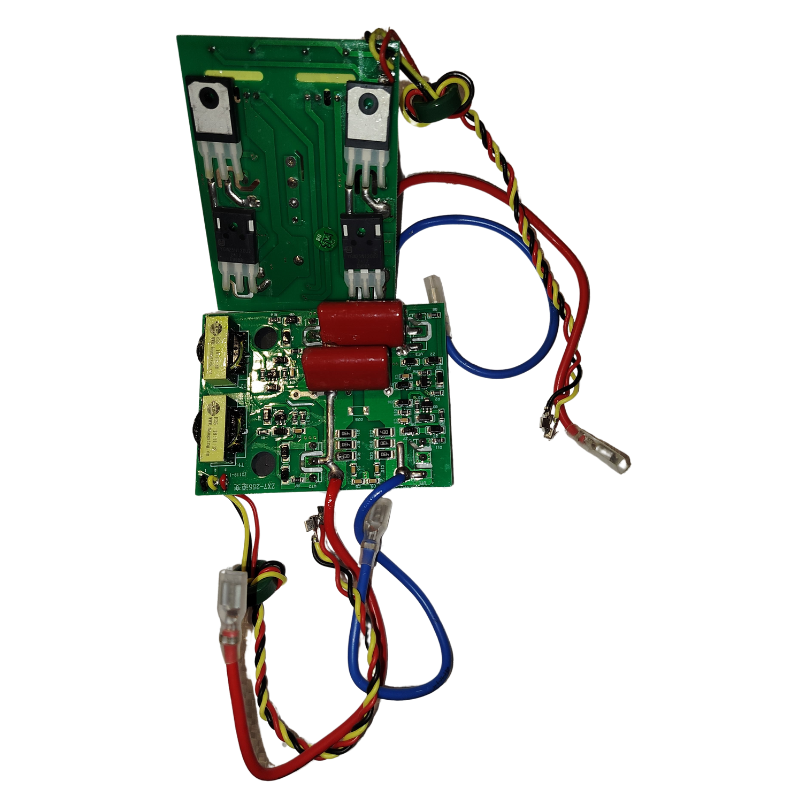

25N120 IGBT Power Card
High-Voltage Switching | Efficient Power Conversion | Industrial Durability
The 25N120 IGBT Card is a precision-engineered power-stage module built around 25A, 1200V N-channel IGBTs. Tailored for inverter welding machines, switch-mode power supplies, and motor-drive inverters, this board delivers low-loss switching, rapid gate response, and robust protection under heavy-load conditions.
🔧 Key Features:
-
⚡ 25N120 IGBTs – Two or more matched 25 A/1200 V devices arranged in half-bridge or full-bridge topology for flexible power conversion
-
🌡️ Low Thermal Resistance – Wide copper traces and integrated heatsink mounting pads for efficient heat dissipation
-
🔒 Integrated Gate Drivers – On-board driver circuitry with under-voltage lockout and configurable dead-time for clean switching edges
-
🛡️ Protection Circuits – Built-in over-current (OCP), over-voltage (OVP), and thermal shutdown safeguards
-
🔌 Heavy-Duty Terminals – Screw or bus-bar connections for DC bus, load output, and gate signals
-
🧲 EMI Mitigation – Snubber networks and input/output filter components reduce electromagnetic interference
📊 Technical Specifications (Typical):
| Parameter | Details |
|---|---|
| IGBT Device | 25N120 (1200 V, 25 A) |
| Configuration | Half-bridge (2 devices) or full-bridge (4 devices) |
| Max Collector–Emitter Voltage (V<sub>CES</sub>) | 1200 V |
| Max Continuous Collector Current (I<sub>C</sub>) | 25 A |
| R<sub>DS(on)</sub> at V<sub>GE</sub>=15 V | ≤ 1.5 Ω |
| Gate Drive Voltage | ±15 V |
| Switching Frequency | Up to 20 kHz |
| PCB Dimensions | ~80 mm × 60 mm |
| Cooling | External heatsink mount |
| Protections | OCP, OVP, thermal shutdown |
🛠️ Applications:
-
Inverter-based ARC, MIG, and TIG welding machines
-
Switch-mode power supplies and UPS units
-
Variable-frequency motor drives
-
Renewable-energy micro-inverters
-
Industrial DC–AC and DC–DC conversion systems
25N120 IGBT Power Card
Optimized for reliable, high-voltage switching in demanding power-conversion environments.
