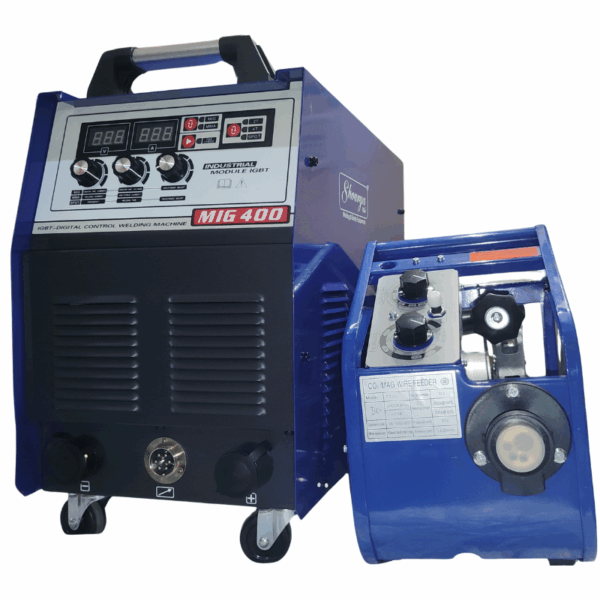

MIG400 Digital IGBT Welder

Industrial-Grade Power | Precision Welding | Advanced Digital Control

The MIG400 Digital IGBT Welder is a robust, high-capacity welding machine designed for intensive industrial applications. Powered by advanced IGBT inverter technology, it delivers superior arc performance, energy efficiency, and a high-duty cycle—making it perfect for continuous welding tasks involving thick materials and high-deposition welding.

With fully digital controls, this welder allows precise adjustment of voltage, current, and wire feed, ensuring consistently strong and clean welds. Ideal for both MIG (GMAW) and MMA (Stick) welding operations, it’s a reliable solution for fabrication shops, shipyards, and heavy engineering industries.

✅ Key Features:

⚡ High-Powered Output – Supports welding up to 400A for thick metal and high-load tasks
📟 Digital Interface – Intuitive control panel for precise voltage, current, and wire speed settings
🛠️ Dual Welding Modes – MIG and MMA (ARC) compatibility for versatile applications
🧠 IGBT Technology – Stable arc, reduced power consumption, and enhanced efficiency
🌡️ Built-In Protection – Overheat, overload, and overvoltage safeguards ensure safe operation
🧊 Heavy-Duty Cooling System – Industrial fan cooling allows continuous, high-load welding
💪 Rugged Construction – Sturdy metal casing for use in harsh environments

📊 Technical Specifications:

Specification	Details
Model	MIG400 Digital IGBT Welder
Welding Modes	MIG (GMAW) & MMA (ARC)
Input Voltage	AC 415V ± 10%, 3-Phase, 50/60Hz
Output Current Range	60 A – 400 A
Duty Cycle	60% @ 400 A
Wire Feed Range	Adjustable, Smooth Feed System
Wire Size Compatibility	0.8 mm – 1.6 mm
Electrode Capacity	Up to 6.0 mm (MMA)
Display	Digital (LED or LCD Panel)
Cooling System	Heavy-Duty Fan-Cooled
Machine Weight	Approx. 30–40 kg

🏭 Applications:

Structural & heavy fabrication
Industrial equipment manufacturing
Shipbuilding & offshore platforms
Pressure vessels and pipeline welding
Heavy machinery maintenance
